Standard Machines

GP-1812General Purpose Laser Work Station

Mundt General Purpose Laser Work Station

GP-1812

  • A General-Purpose Workstation
  • Available in Class I or Class IV configurations
  • Travel & Work Area = 18” X 12” X 8”
The GP-1812 is a smaller travel workstation but is applicable for manufacturing a large variety of applications such as cutting, welding and ablation.
This machine has a split gantry with the X & Z Axis positioned on an upper bridge and the Y Axis is located on the base plate.
This high precision sturdy workhorse is solid steel and is capable of running product development to operating 24/7 production.

Mundt Special Feature
This Standard GP-1812 is built to add additional machine options that can be upgraded in the field.

GP-1812 Specs Download PDF
Travel X Axis 18 in
Travel Y Azis 12 in
Travel Z Axis 8 in
Travel Tilt Axis Optional 135 deg
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed 8 in/sec
Maximum Y Axis Speed 8 in/sec
Maximum Z Axis Speed 5 in/sec
Maximum X Axis Speed With Linear Motor 20 in/sec
Maximum Y Axis Speed With Linear Motor 20 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotary Axis Optional Gear Drive 20 deg/sec
Maximum Speed Rotaty Axis Optional Direct Drive 1000 rpm

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis Optional Gear Drive 200 arc-sec
Accuracy Rotary Axis Optional Direct Drive +/- 10 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional Gear Drive 3.2 arc-sec
Positioning Reolution Rotary Optional Direct Drive 1.8 arc-sec

Brushless Servo Motor Control X,Y and Z
Heavy Duty Roller Ways X,Y and Z
Machine Base 3 in Ground Steel
Machine Supports 4 in Steel Tubing
Optional Axes Up to 12 Axes

GP-3024Medium Travel Split Gantry Laser Work Station

Mundt Medium Travel Split Gantry Laser Work Station

GP-3024

  • A General-Purpose Workstation for manufacturing medium size products
  • Available in Class I or Class IV configurations
  • Travel & Work Area = 30” X 24” X 12”
Essentially a larger version of the GP-1812, the Gp-3024 also has a split gantry with the X & Y Axis positioned on an upper bridge and the Y Axis is located on the base plate.
This high precision sturdy workhorse is solid steel and is capable of running product development to operating 24/7 production.

Mundt Special Feature
This Standard GP-3024 is built to add additional machine options that can be upgraded in the field.

GP-3024 Specs Download PDF
Travel X Axis 30 in
Travel Y Azis 24 in
Travel Z Axis 12 in
Travel Tilt Axis Optional 135 deg
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed 8 in/sec
Maximum Y Axis Speed 8 in/sec
Maximum Z Axis Speed 5 in/sec
Maximum X Axis Speed With Linear Motor 20 in/sec
Maximum Y Axis Speed With Linear Motor 20 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotary Axis Optional Gear Drive 120 deg/sec
Maximum Speed Rotaty Axis Optional Direct Drive 1000 rpm

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis Optional Gear Drive 200 arc-sec
Accuracy Rotary Axis Optional Direct Drive +/- 10 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional Gear Drive 3.2 arc-sec
Positioning Reolution Rotary Optional Direct Drive 1.8 arc-sec

Brushless Servo Motor Control X,Y and Z
Heavy Duty Roller Ways X,Y and Z
Machine Base 3 in Ground Steel
Machine Supports 4 in Steel Tubing
Optional Axes Up to 12 Axes

GP-3628-FLarge Travel General Purpose Laser Work Station

Mundt Large Travel General Purpose Laser Work Station

GP-3628-F

  • A General-Purpose Workstation for manufacturing larger products
  • Available in Class I or Class IV configurations
  • Travel & Work Area = 36” X 28” X 12”
This machine is built to optimize a larger work area with a smaller base to save floor space.
The GP-3628-F has a split gantry with the X & Z Axis positioned on an upper bridge and the Y Axis is located on the base plate.
This Standard machine has the same additional features as others in this GP Series.

Mundt Special Feature
This Standard GP-3628-F is built to add additional machine options that can be upgraded in the field.

GP-3628-F Specs Download PDF
Travel X Axis 36 in
Travel Y Azis 28 in
Travel Z Axis 12 in
Travel Tilt Axis Optional 135 deg
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed 8 in/sec
Maximum Y Axis Speed 8 in/sec
Maximum Z Axis Speed 5 in/sec
Maximum X Axis Speed With Linear Motor 20 in/sec
Maximum Y Axis Speed With Linear Motor 20 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotary Axis Optional Gear Drive 120 deg/sec
Maximum Speed Rotaty Axis Optional Direct Drive 1000 rpm

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis Optional Gear Drive 200 arc-sec
Accuracy Rotary Axis Optional Direct Drive +/- 10 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional Gear Drive 3.2 arc-sec
Positioning Reolution Rotary Optional Direct Drive 1.8 arc-sec

Brushless Servo Motor Control X,Y and Z
Heavy Duty Roller Ways X,Y and Z
Machine Base 3 in Ground Steel
Machine Supports 4 in Steel Tubing
Optional Axes Up to 12 Axes

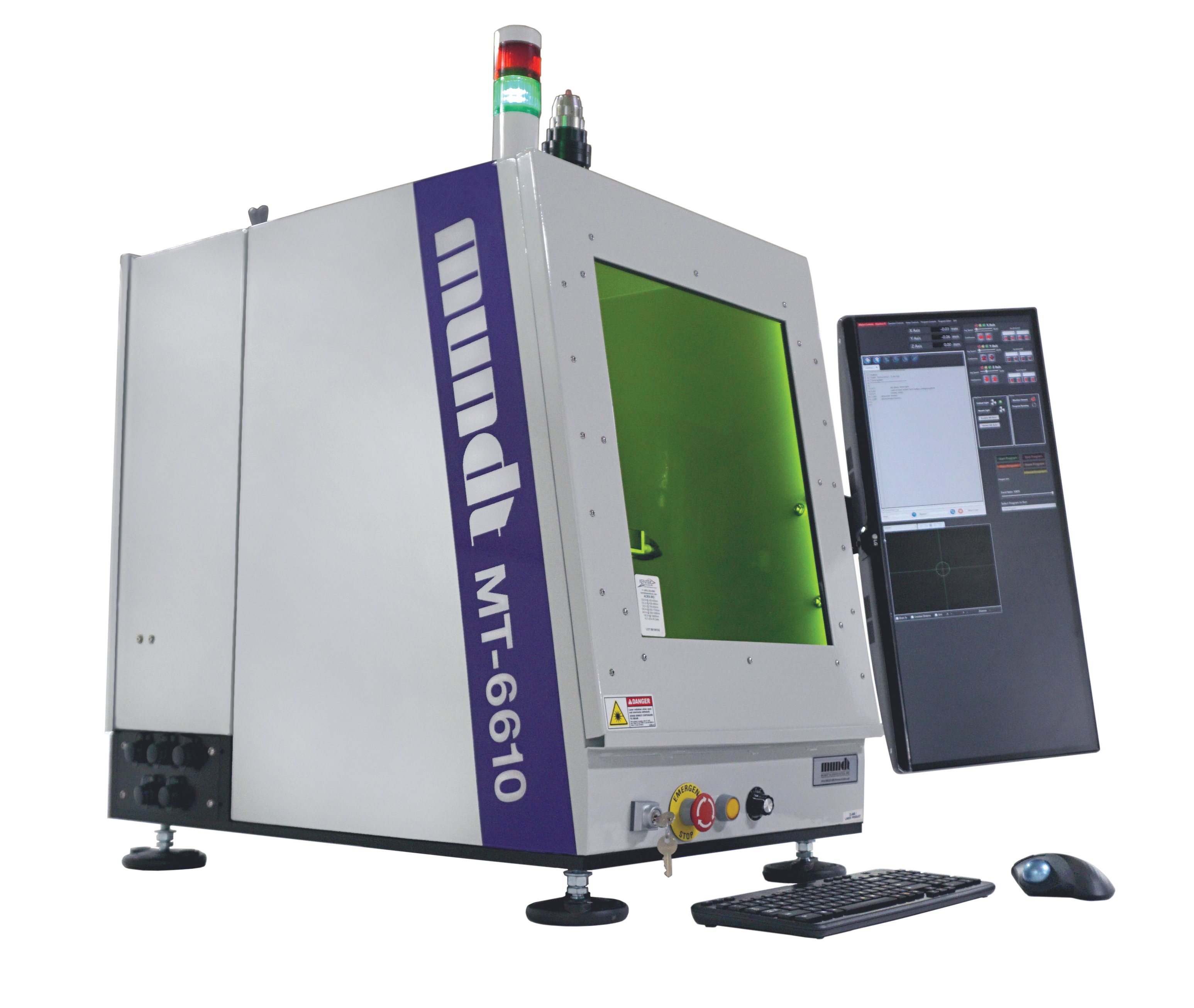

MT-6610Tabletop Laser Work Station

Tabletop Laser Work Station

MT-6610

  • A tabletop Workstation
  • Available in Class I or Class IV configurations
  • Travel & Work Area = 6” X 6” X 10”
The MT-6610 is a small footprint system that answers the need for a powerful robust Tabletop Laser Workstation that specializes in advanced laser technology to meet the demands of today's industry challenges for small, complex high value parts, often manufactured with expensive materials.

Mundt Special Feature
The MT-6610 can be built to suit with specified options for individual specialty requirements.

MT-6610 Specs Download PDF
Travel X Axis 6 in
Travel Y Azis 6 in
Travel Z Axis 10 in
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed (ballscrew) 6 in/sec
Maximum Y Axis Speed (ballscrew) 6 in/sec
Maximum Z Axis Speed (ballscrew) 5 in/sec
Maximum X Axis Speed With Linear Motor 15 in/sec
Maximum Y Axis Speed With Linear Motor 15 in/sec
Maximum Speed Rotary Axis Optional Gear Drive 150 RPM

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Optional Rotary Axis 200 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Optional Rotary 3.2 arc-sec

Brushless Servo Motor Control X,Y and Z
Heavy Duty Roller Ways X,Y and Z
Machine Base 2-1/2 in Steel Tubing
Optional Manual Closing Collets 1C
Optional Chuck for Rotary 2 in
Optional automatic closing Collet 1C

DB-2412General Purpose Laser Work Station

Mundt General Purpose Laser Work Station
Embrace Micromachining

DB-2412

  • A General-Purpose Moving Part Laser Workstation
  • Available in Class I or Class IV configurations
  • Travel & Work Area = 24” X 12” X 12”
This specialized sturdy machine is built with steel and features the X & Y Axis positioned on the base with the Z Axis mounted on a column. This configuration lends itself for hard optic beam delivery that is utilized with Ultra Short Pulse Lasers.
Multiple Accessories Options are available for the DB Series.

Mundt Special Feature
This Standard DB-2412 is built to add additional machine options that can be upgraded in the field.

DB-2412 Specs Download PDF
Travel X Axis 24 in
Travel Y Azis 12 in
Travel Z Axis 12 in
Travel Tilt Axis Optional 100 deg
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed 8 in/sec
Maximum Y Axis Speed 8 in/sec
Maximum Z Axis Speed 5 in/sec
Maximum X Axis Speed With Linear Motor 20 in/sec
Maximum Y Axis Speed With Linear Motor 20 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotary Axis Optional Gear Drive 20 deg/sec
Maximum Speed Rotaty Axis Optional Direct Drive 1000 rpm

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis Optional Gear Drive 200 arc-sec
Accuracy Rotary Axis Optional Direct Drive +/- 10 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional Gear Drive 3.2 arc-sec
Positioning Reolution Rotary Optional Direct Drive 1.8 arc-sec

Brushless Servo Motor Control X,Y and Z
Heavy Duty Roller Ways X,Y and Z
Machine Base 3 in Ground Steel
Machine Supports 4 in Steel Tubing
Optional Axes Up to 12 Axes

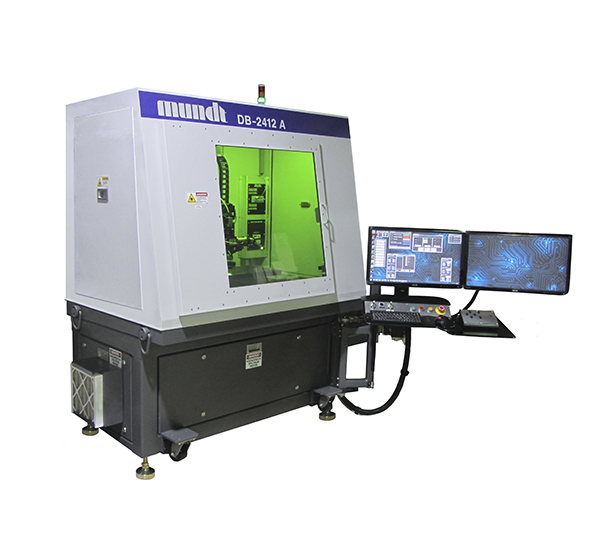

DB-2412-ADB-2412-A Laser Workstation

Mundt DB-2412-A Laser Workstation
Enable Micromachining with Machine

DB-2412-A

  • A General-Purpose Moving Part Laser Workstation
  • Available in Class I or Class IV configurations
  • Travel & Work Area = 24” X 12” X 18”
This machine can handle manufacturing medium size products.
This machine is the same as the DB-2412 except if offers an extended 18” Z travel
DB-2412-A Specs Download PDF
Travel X Axis 24 in
Travel Y Azis 12 in
Travel Z Axis 18 in
Travel Tilt Axis Optional 110 deg
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed 8 in/sec
Maximum Y Axis Speed 8 in/sec
Maximum Z Axis Speed 5 in/sec
Maximum X Axis Speed With Linear Motor 20 in/sec
Maximum Y Axis Speed With Linear Motor 20 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotary Axis Optional Gear Drive 120 deg/sec
Maximum Speed Rotaty Axis Optional Direct Drive 100 rpm

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis Optional Gear Drive 200 arc-sec
Accuracy Rotary Axis Optional Direct Drive +/- 10 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional Gear Drive 3.2 arc-sec
Positioning Reolution Rotary Optional Direct Drive 1.8 arc-sec

Brushless Servo Motor Control X,Y and Z
Heavy Duty Roller Ways X,Y and Z
Machine Base 3 in Ground Steel
Machine Supports 4 in Steel Tubing
Optional Axes Up to 12 Axes

DB-241218-7AxisDB-241218 Ultra Short Pulse Laser Workstation

Mundt DB-241218 Ultra Short Pulse Laser Workstation

Embrace Micromachining

DB-241218-7 Axis

  • An expandable/adaptable Ultra short Pulse Laser Workstation with 7 Axis of Motion
  • Available in Class IV configurations
  • Travel & Work Area = 24” X 12” X 18”
  • Included, Infinite Field of View with a scan head and an ultra-short pulse laser.
DB-241218-7Axis Specs Download PDF
Travel X Axis 24 in
Travel Y Azis 12 in
Travel Z Axis 18 in
Travel Tilt Axis Optional +/- 135 deg
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed 8 in/sec
Maximum Y Axis Speed 8 in/sec
Maximum Z Axis Speed 5 in/sec
Maximum X Axis Speed With Linear Motor 20 in/sec
Maximum Y Axis Speed With Linear Motor 20 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotary Axis Optional Gear Drive 120 deg/sec
Maximum Speed Rotaty Axis Optional Direct Drive 500 rpm

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis Optional Gear Drive 200 arc-sec
Accuracy Rotary Axis Optional Direct Drive +/- 10 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional Gear Drive 3.2 arc-sec
Positioning Reolution Rotary Optional Direct Drive 1.8 arc-sec

Brushless Servo Motor Control X,Y and Z
Optional Linear Motors X and Y
Heavy Duty Roller Ways X,Y and Z
Machine Base Ground Steel
Machine Supports Steel Tubing
Optional Axes Up to 12 Axes

CB-3012General Purpose Overhead Gantry Laser Work Station

Mundt General Purpose Overhead Gantry Laser Work Station

CB-3012

  • A General-Purpose Overhead Gantry Laser Workstation
  • Travel & Work Area = 30” X 12” X 12”
The X Y & Z axis are positioned on an overhead bridge (Gantry) that allows for a totally open work area capable of supporting heavy parts.
Multiple options and accessories are available for this adaptable workhorse and it is built to be able to modify or upgrade in the field.
CB-3012 Specs Download PDF
Travel X Axis 30 in
Travel Y Azis 12 in
Travel Z Axis 12 in
Travel Tail Stock 2 in

Maximum X Axis Speed 20 in/sec
Maximum Y Axis Speed 20 in/sec
Maximum Z Axis Speed 3 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotaty Axis Optional 1000 rpm

Accuracy X Axis +/- 2 µm/m
Accuracy Y Axis +/- 2 µm/m
Accuracy Z Axis +/- .0005 in/ft
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis +/- 10 arc-sec

Positioning Resolution X Axis .2 µm
Positioning Resolution Y Axis .2 µm
Positioning Resolution Z Axis .7 µm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional 1.8 arc-sec

Linear Motor Control X and Y
Rotary Servo Motor Controlled Z
Machine Base 3 in Ground Steel
Machine Supports 4 in Steel Tubing
Heavy Duty Roller Ways X,Y and Z axis

GT-1000Heavy Duty Laser Work Station

Mundt Heavy Duty Laser Work Station

GT-1000

  • A Heavy-Duty Large Travel Workstation capable of processing large heavy parts
  • Travel & Work Area = 48” X 24” X 36” (is expandable)
This workstation is easily accessible and convenient from all four sides.
The GT-1000 features very large X and Y Axes on a welded steel base, with a sturdy cantilevered arm on a hefty Z Axis. The rigid arm I s ideal for a tool changer for swapping out laser focusing heads.


GT-1000 Specs Download PDF
Travel X Axis 48 in
Travel Y Azis 24 in
Travel Z Axis 36 in

Maximum X Axis Speed 10 in/sec
Maximum Y Axis Speed 10 in/sec
Maximum Z Axis Speed 6 in/sec

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft

Positioning Resolution X Axis .00005 in
Positioning Resolution Y Axis .00005 in
Positioning Resolution Z Axis .00005 in

Rotary Servo Motor Axes X,Y,Z,U and V

IB-1284Heavy Wire Laser Bonder

Mundt Heavy Wire Laser Bonder

IB-1284

  • A Heavy-Duty Wire Laser Bonder
  • Travel & Work Area = 12” X 8” X 4”
This robust laser workstation is capable of running 24/7 and is fully automated and capable of running unattended.
The IB-1284 is a high-performance Bonder and is highly reliable, which makes it perfect for medical or aerospace applications and multiple battery interconnecting Processes.


IB-1284 Specs Download PDF
Travel X Axis 12 in
Travel Y Azis 8 in
Travel Z Axis 4 in
Travel W Axis .10 in

Maximum X Axis Speed 20 in/sec
Maximum Y Axis Speed 20 in/sec
Maximum Z Axis Speed 10 in/sec
Maximum W Axis Speed 20 in/sec
Maximum Speed Rotary Axis 2 RPS

Accuracy X Axis +/- 2 µm/m
Accuracy Y Axis +/- 2 µm/m
Accuracy Z Axis +/- .0005 in/ft
Accuracy W Axis +/- 2 µm/m
Accuracy Rotary Axis 5 arc min

Positioning Resolution X Axis .1 µm
Positioning Resolution Y Axis .1 µm
Positioning Resolution Z Axis 1 µm in
Positioning Resolution W Axis 1 µm in
Positioning Reolution Rotary Axis .01 in

Linear Motor Control X,Y and W
Dc Servo Motor Control Z and rotary axis
Touch Down Force Programmable 0-900 gm
Clamping Force Programmable 0-1300 gm

SG-1805-GStent Graf Laser Work Station

Mundt Stent Graf Laser Work Station

SG-1805-G

  • Stent Graft Laser Workstation
  • Travel & Work Area = 18” X 5”
The SG-1805 is optimized for hard optics laser beam delivery, with X and Z Axes on a bridge overhanging a fixed rotary and tailstock.
This machine is historically a dedicated workstation that trims excess material from a stent graft, but it can readily be adapted for any application requiring on-centerline laser operations on a rigid shaft or tube.


SG-1805-G Specs Download PDF
Travel X Axis 18 in
Travel Z Axis 5 in

Maximum X Axis Speed 5 in/sec
Maximum X Axis Speed Optional Linear Motor 15 in/sec
Maximum Z Axis Speed 3 in/sec
Maximum Speed Rotary 1000 RPM

Accuracy X Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis +/- .0005 in/ft
Accuracy Rotary +/- 0.001 deg

Positioning Resolution X Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis .000016 in
Positioning Resolution Rotary +/- 0.0001 deg

Brushless Servo Motor Control X,Z and Rotary
Optional Linear Motor Controlled X axis
Heavy Duty Roller Ways X and Z
Rotary To Mandrel I F Morse taper
Minimum Mandrel Length 5.5 in
Maximum Mandrel Length 22 in
Maximum Mandrel Diameter 3 in

GP-3012Glove Box Laser Work Station

Mundt Glove Box Laser Work Station

GP-3012

  • A Class I configuration with a split gantry
  • Travel & Work Area = 30” X 12” X 8”
The X and Y axis are located on an overhead bridge and the Y axis is located on the base. This special combination allows lots if travel for a minimum floor space for machine travel. A specialty feature is the capability to have a precisely controlled atmosphere for processing products, a feature that is required for manufacturing multiple medical products.
GP-3012 Specs Download PDF
Travel X Axis 30 in
Travel Y Azis 12 in
Travel Z Axis 8 in
Travel Tilt Axis Optional 100 deg
Travel Rotary Axis Optional Continuous

Maximum X Axis Speed 8 in/sec
Maximum Y Axis Speed 8 in/sec
Maximum Z Axis Speed 5 in/sec
Maximum X Axis Speed With Linear Motor 20 in/sec
Maximum Y Axis Speed With Linear Motor 20 in/sec
Maximum Speed Tilt Axis Optional 120 deg/sec
Maximum Speed Rotary Axis Optional Gear Drive 120 deg/sec
Maximum Speed Rotaty Axis Optional Direct Drive 1000 rpm

Accuracy X Axis +/- .0005 in/ft
Accuracy Y Axis +/- .0005 in/ft
Accuracy Z Axis +/- .0005 in/ft
Accuracy X Axis Optional Linear Motor +/- 5 µm/m
Accuracy Y Axis Optional Linear Motor +/- 5 µm/m
Accuracy Z Axis Optional Linear Motor +/- 5 µm/m
Accuracy Tilt Axis Optional 200 arc-sec
Accuracy Rotary Axis Optional Gear Drive 200 arc-sec
Accuracy Rotary Axis Optional Direct Drive +/- 10 arc-sec

Positioning Resolution X Axis .000016 in
Positioning Resolution Y Axis .000016 in
Positioning Resolution Z Axis .000016 in
Positioning Resolution X Axis Optional Linear Motor 250 nm
Positioning Resolution Y Axis Optional Linear Motor 250 nm
Positioning Resolution Z Axis Optional Linear Scale 250 nm
Positioning Resolution Tilt Optional 3.2 arc-sec
Positioning Resolution Rotary Optional Gear Drive 3.2 arc-sec
Positioning Reolution Rotary Optional Direct Drive 1.8 arc-sec

Brushless Servo Motor Control X,Y and Z
Heavy Duty Roller Ways X,Y and Z
Machine Base 3 in Ground Steel
Machine Supports 4 in Steel Tubing
Optional Axes Up to 12 Axes

AB-200150-5Micromachining Work Station

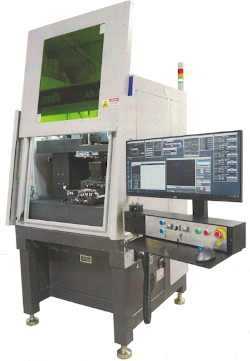

Mundt AB-200150-5 Workstation

AB-200150-5

  • Total Stability
  • Extreme Accuracy
  • Perfect Performance Micromachining
  • Laser Manufacturing with Precise Accuracy
Built with granite and ceramic to achieve EXTREME accuraciesthat permit machining of tiny detailed features. Complex beam delivery provides an extremely small spot with a Galvanometer. Infinite Field of View allows accurate and seamless machining with the Galvo and cartesian axes that the scanner optics alone cannot provide.

Air-Bearing Stage

Air-Bearing Stages enable high precision movement with no friction. The stage "glides" on a cuchion of air that allows smooth controlled motion for PRECISE operations. Air-Bearing systems can deliver sub-micron accuracies. The Mundt Air_Bearing Stage when paired with ultra-short pulse lasers provide the ultimate micromachining workstation.
GP-3012 Specs Download PDF
Travel X Axis 200 mm
Travel Y Azis 150 mm
Travel Z Axis 20 mm
Travel U Axis 10 mm
Travel V Azis 10 mm
Travel C Axis 360 deg

Maximum X Axis Speed 25 mm/sec
Maximum Y Axis Speed 25 mm/sec
Maximum Z Axis Speed 2 mm/sec
Maximum C Axis Speed 1200 RPM

Accuracy X Axis +/- .5 μu
Accuracy Y Axis +/- .5 μu
Accuracy Z Axis +/- .75 μu
Accuracy C Axis +/- 30 arc-sec

Positioning Resolution X Axis 10 nm
Positioning Resolution Y Axis 10 nm
Positioning Resolution Z Axis +/- .025 μu
Positioning Resolution C Axis Motor 1.8 arc-sec

Linear Motor Control X,Y
Brushless Servo Motor Control C
Infinite Field of View
Machine Base Granite
Machine Supports 4" Steel Tubing
